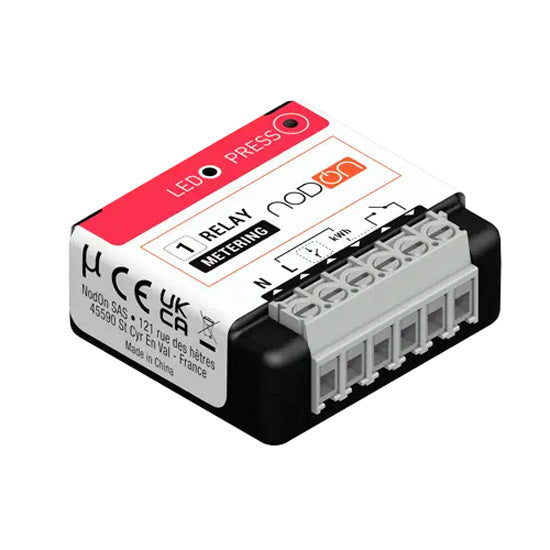

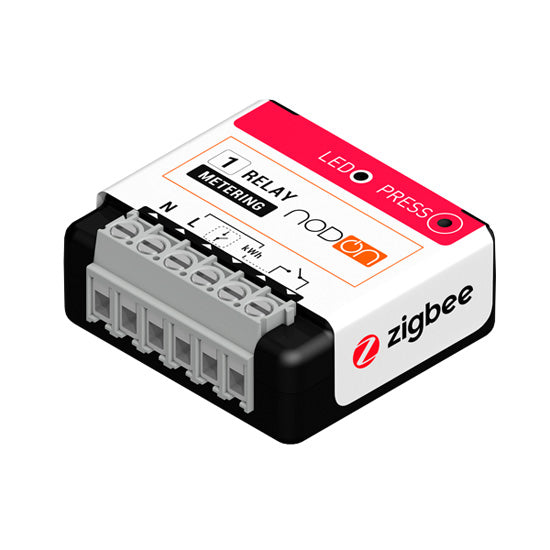

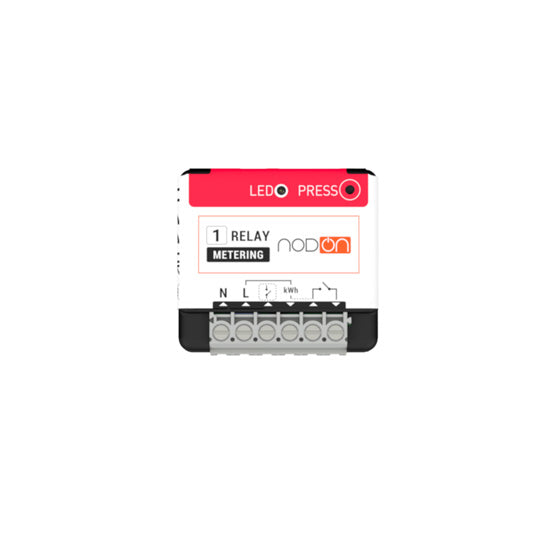

Multifunction module with consumption measurement zigbee
NODON

Multifunction module with consumption measurement zigbee

Compact zigbee module with consumption measurement and remote control

REFNO-SIN-4-1-21EAN3700313925799
Recommended retail price
49,94 €
incl. 0,04 € eco-fee
Reseller price
Sign in to see your net purchase price excl. VAT
Open an account

Description

Discover the Multifunction Module with Zigbee consumption measurement: easily manage your equipment like garage doors, gates, radiators, sockets, or boilers.

Take control of your consumption and save energy!

Quick to install, it transforms your existing devices into connected equipment, remotely controllable via a compatible home automation hub, from your smartphone, by voice, or automatically.

Key strengths

High switching capacity

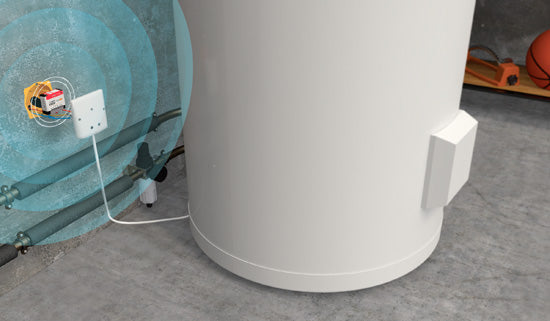

3000W, perfect for controlling individual or collective devices such as water heaters or boilers.

Consumption measurement

Measures instantaneous power and cumulative energy to optimize energy savings.

Potential-free output

The module features a dry contact output.

Ultra-compact profile

Compact design suitable for flush-mounted boxes.

Electrical panel installation

Requires a DIN rail box for easy integration.

Over The Air updates

Updates can be performed quickly via a compatible home automation hub and the NodOn Connect app.

Compatible with all Zigbee ecosystems

Zigbee 3.0 ensures full interoperability with the Zigbee ecosystem.

Specifications

3000W

Max power

14A

Switching

40m

Radio range

Power & consumption
Power supply230 V AC ~ 50 Hz
Switching capacity230 V AC, 14 A
Consumption< 1 W
Max power3000 W, integrated zero crossing

Radio connectivity
ProtocolZigbee 3.0
Frequency band2.4 GHz
Max radio power+10 dBm
Radio range40 m indoors

Operating temperature
In open airBetween -20 and 40 °C
In flush-mounted boxBetween -20 and 35 °C
In NodOn DRBBetween -20 and 40 °C
In NodOn BPSBetween -20 and 40 °C

Certifications
Protection ratingIP 20
Device ID TypeSmart Plug (0 × 0051)

Compatibility
OperationRequires a compatible Zigbee home automation hub for automatic or remote control

Warranty
Commercial warranty2 years

References and weights
BrandNODON
Internal referenceNO-SIN-4-1-21
EAN code3700313925799
Product typeACTIONNEURS
Net weight360 g
Gross weight380 g
