DIN Rail Enclosure V3 (Power Version)

D'origine Française, la marque Nod On conçoit des produits de domotique design et de haute qualité, à des prix abordables.

DIN rail support for power modules: quick integration into the electrical panel

49.90^{€ Incl. VAT}

In stock

Skip to the end of the images gallery

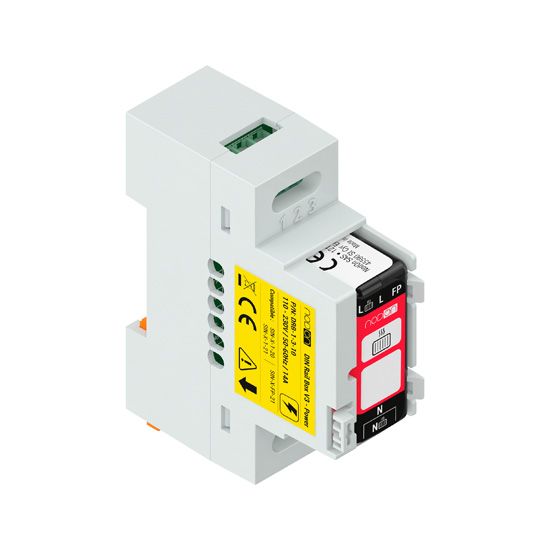

DIN Rail Enclosure V3 (Power Version) - Nodon

Skip to the beginning of the images gallery

Description

Accessory that allows mounting and powering power home automation modules directly in the electrical panel on a DIN rail. Ideal for both new builds and renovations: it saves time, avoids wiring work for pilot wire heating control, and simplifies consumption monitoring when combined with measurement-enabled modules. Modules are quickly mounted and connected; sold separately.

Strengths

Time-saving for project and on-site installation.
Allows pilot wire heating control without new wiring.
Facilitates real-time consumption monitoring (with metering modules).
Quick and safe installation and commissioning in the electrical panel.
Compatible with most residential and commercial panels (O rail EN 50022).
Compact and lightweight, takes up little space in the panel.

Characteristics

Compatible modules: SIN-X-1-20, SIN-1-21, SIN-X-FP-21 (modules sold separately).
Compatible functions: multifunction with/without metering, pilot wire heating.
Compatible DIN rail: type O EN 50022.
Maximum current: 14 A.
Operating temperature: -20 °C to +40 °C.
Protection rating: IP20.
Dimensions: 82 × 66 × 25 mm.
Weight: 49.5 g.
Connection terminals: 1–6 (simple wiring to panel).
Main standards: EN 60947-7-1; secondary standard: EN 61984.
Commercial warranty: 2 years.
Reference: DRB-1-3-10 (EAN pack x5: 3700313926314).
