DIN Rail Enclosure V3 (Standard Version)

D'origine Française, la marque Nod On conçoit des produits de domotique design et de haute qualité, à des prix abordables.

DIN-rail mount for smart home modules: quick installation in the electrical panel

49.90^{€ Incl. VAT}

In stock

Skip to the end of the images gallery

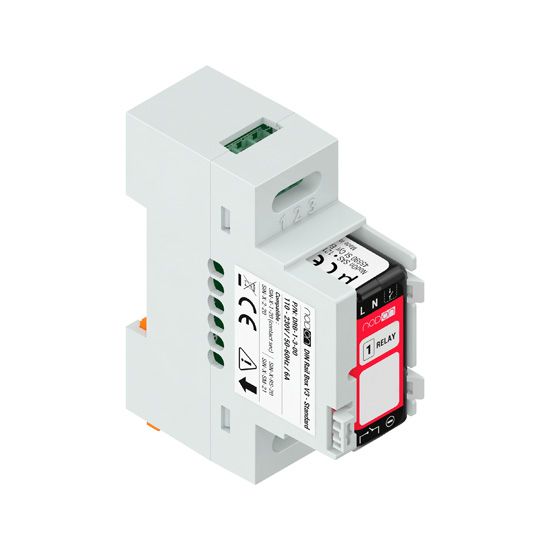

DIN Rail Enclosure V3 (Standard Version) - Nodon

Skip to the beginning of the images gallery

Description

This accessory allows easy mounting and connection of smart home modules directly into the electrical panel on a standard DIN rail. It is ideal for both new builds and renovations: it saves installation time, avoids additional wiring, and enables control of lights, blinds, and energy monitoring with compatible modules. Its quick installation reduces on-site work and makes commissioning easier and faster.

Strengths

Time savings in project preparation and on-site installation.
Enables modernization of installations without construction work or new wiring (useful for renovations).
Makes it easy to convert motorized blinds into remotely controllable devices.
Simplifies the creation of two-way switching without additional wiring when used with the ON/OFF lighting module.
Quick installation and commissioning: secure module fitting and easy connection in the panel.
Compatible with most residential and commercial electrical panels (DIN rail type O EN 50022).
Lightweight and compact product that doesn't take up unnecessary space in the panel.

Characteristics

Compatible module models: SIN-X-1-20 (dry contact), SIN-X-2-20, SIN-X-RS-20, SIN-X-SM-21.
Compatible with function modules: ON/OFF lighting, Roller Shutter, Multifunction, Smart Meter Module (energy measurement).
Mounting: compatible with DIN rail type O EN 50022.
Maximum current: 6 A.
Operating temperature: -20 °C to +40 °C.
Protection rating: IP20.
Dimensions: 82 x 66 x 25 mm.
Weight: 48 g.
Connection terminals: 1 to 6 (wired to the electrical panel).
Assembly: quick module fastening via internal clips and external notches.
Main standards: EN 60947-7-1; secondary standard: EN 61984.
Commercial warranty: 2 years.
Reference/pack: DRB-1-3-00 (EAN pack x5: 3700313926284).
